Land Rover SERIES III 109 HT/PU 4cyl civilian chassis RHD
Quantity: pcs Ask the shop assistant

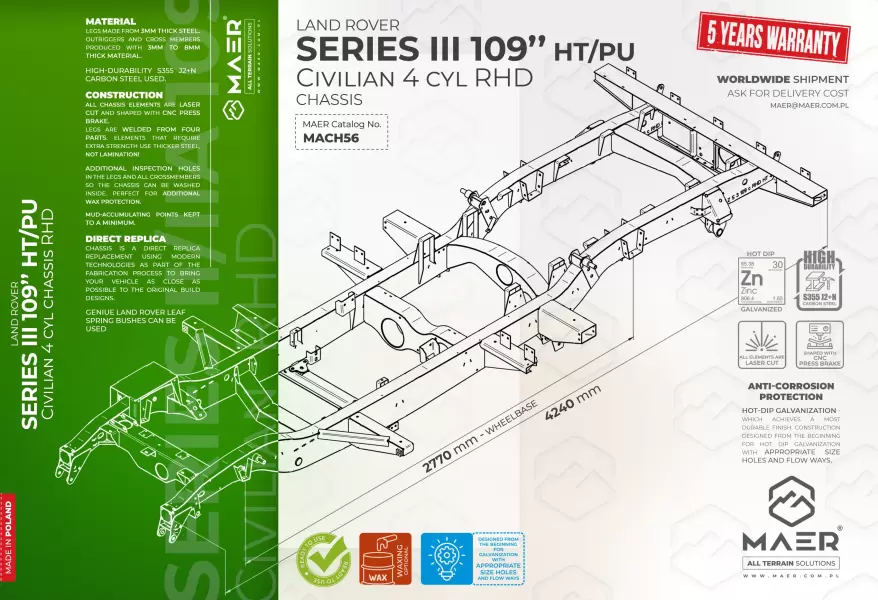

LAND ROVER SERIES III 109" HT/PU 4 CYL RHD civilian GALVANISED CHASSIS
2.549,00  | £ 2.599,00
ex. VAT
+
 delivery cost
  incl. VAT
+
UK Mainland
free delivery




Additional
options
(CHASSIS ONLY)

W A  X  I  N  G
155,55
ex. VAT
£ 175,00 incl. VAT



Direct replica



Chassis is a direct replica replacement using modern technologies as part
of the fabrication process
to bring your vehicle as close as possible to the original build designs.
Genuine Land Rover leaf spring bushes can be used:
- rear: 1, 187" (1 3/16" )
- front: 1,5" (1 1/2")



Material




Legs made from 3mm thick steel. Outriggers and cross members produced with 3mm to 8mm-thick material.
High-durability S355 J2+N carbon steel used.


Construction






All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!
Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.


Anti-corrosion protection


Hot dip galvanization – high-quality coating which achieves
a most durable finish.
Construction designed
from the beginning for hot dip galvanization with appropriate
size holes and flow ways.

Availability


All
wheelbases, body
and engine versions
available.


Gearbox
crossmember


Bolted

Warranty

5 years

Product specification

LAND ROVER SERIES III 109" HT/PU 4 CYL RHD CIVILIAN GALVANISED CHASSIS


TOTAL LENGTH
WIDTH
HEIGHT
WEIGHT WHEELBASE VERSION
4322 mm 1555 mm 495 mm 200 kg 2770 mm Civilian
